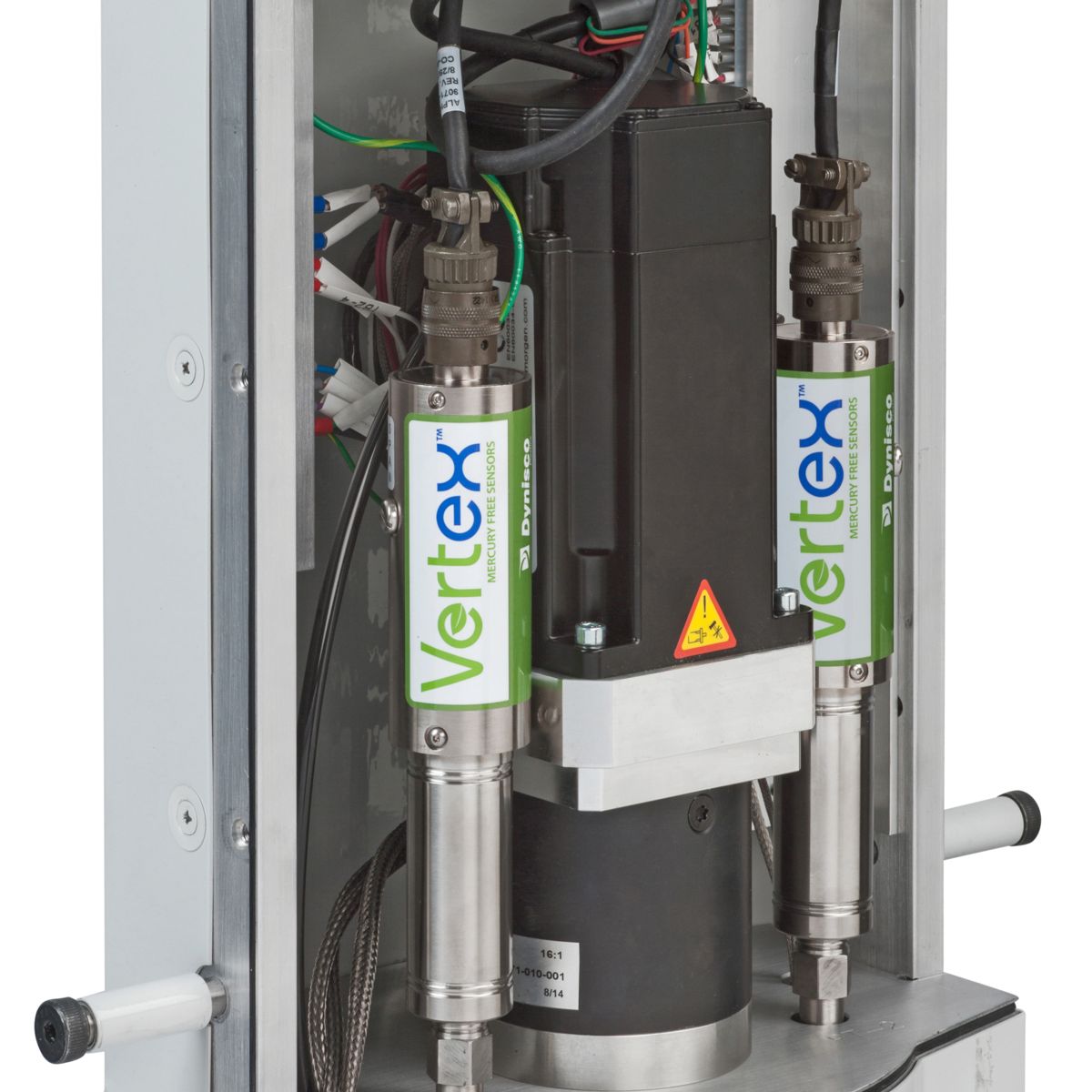

The pressure range for Vertex is now available from 250 - 10,000 PSI. Vertex is more accurate within our Polymer Test equipment than any other mercury-filled sensor and is ideal for industrial applications that require low pressure. Not only is this an overall improvement to one’s process, but it helps with customers that are focused on sustainability and zero-waste.
No fill material
RoHS compliant for sustainability programs
Robust, thicker Inconel diaphragm is coated with DyMax®
Optional Type J or K thermocouple is available to provide a melt temperature signal as well as a 4-20 mA temperature output
Equipped with a 1/2-20 UNF for installation in standard transducer mounting holes
Also available to install 1/2-20 UNF units into a Button Seal application
Diaphragm composition of Inconel 718 coated with the abrasion resistant properties of DyMax®
Sealed, welded shell and electrical connection available if washdown capability is needed for food or mechanical applications (not available if thermocouple option TCx is selected)
Available with thermocouple temperature output
250-10,000 PSI pressure range capability
HART digital communication available
Direct measurement tip is a simple and elegant design with a more robust diaphragm
Direct measurement of process reduces errors transferred by complicated internal support structures, transmission fill materials, or moving push rods
Designed to work with universal pressure indicators
